Table Design
Dining, console and work tables, built from a top, its legs and the apron rails between them. Set the size to the room, round the corners, pick post, tapered, turned or hairpin legs and splay them, and get the cut sheet.
7 tables to start from
From an oak dining table to a hairpin table and a farmhouse table with turned legs. Each is a starting point.
Dining Oak
Table in oak, 1800 mm wide, 750 mm high.

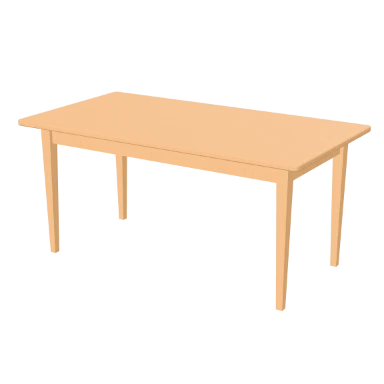

Tapered Oak Table
Table in oak, 1600 mm wide, 750 mm high.

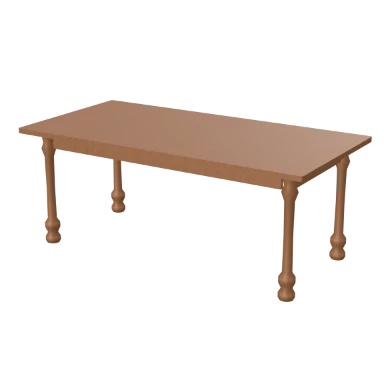

Turned Farmhouse Table
Table in walnut, 1900 mm wide, 750 mm high.

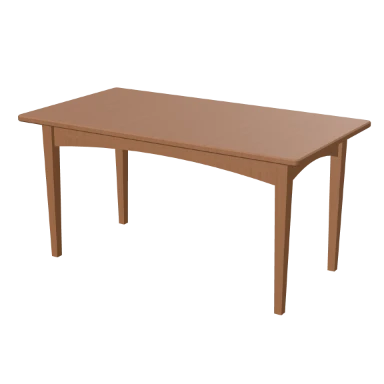

Arched Skirt Table
Table in walnut, 1500 mm wide, 750 mm high.

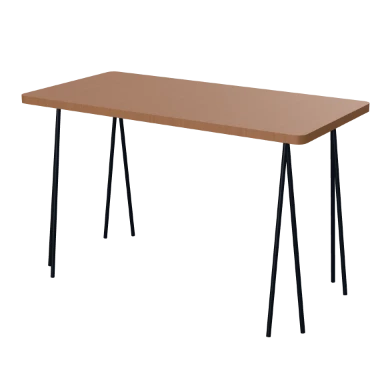

Hairpin Table
Table in walnut, 1200 mm wide, 740 mm high.

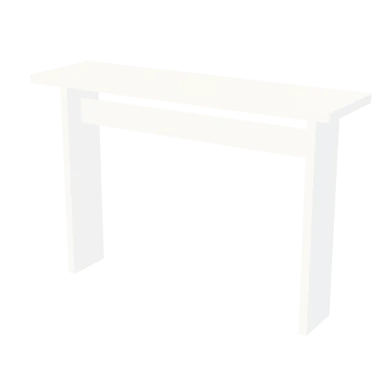

Console (laminate)
Table in white laminate, 1200 mm wide, 800 mm high.

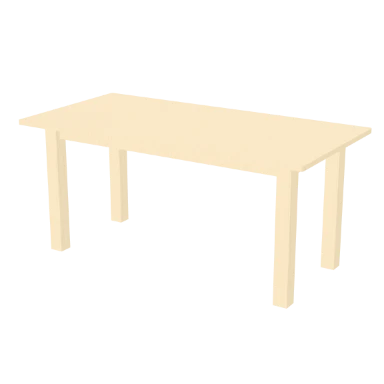

Birch Work Table
Table in birch ply, 2000 mm wide, 900 mm high.
Every property, and what it does
Select a table and these are its rows: its design and cut sheet, then its top, legs and apron.
Design and cut sheet
What the piece is, which design it carries, and what it takes to make.
| Field | What it does | Values |
|---|---|---|
| Type | Rebuilds the piece as a different kind of furniture, where it stands. | Table, coffee table, desk, chair, stool, bench, shelving, cabinet, wardrobe, bed |
| Preset | Replaces the piece's design with another, keeping where it stands. | The 7 presets and your saved designs |
| Apply this design to | Gives every other piece of the same kind on this floor, or in the project, the same design. | This floor, the whole project |
| Save this design | Saves the design under a name as a preset of your own. | A name |
| Cut sheet | Counts the boards, sheets, yield, board area, edge tape, timber, bought in hardware and machining it takes, nested on the stock sheet you choose. | Read from the design |
Top
The top: its finish, size and edge.
| Field | What it does | Values |
|---|---|---|
| Material | The main finish of the piece. | Oak, Walnut, Birch ply, Pine, White laminate, Travertine, Plaster, Concrete, Black metal, Steel, Linen, Boucle, Fabric taupe, Fabric grey, Fabric charcoal, Tan leather, Matte ink, Matte clay, Matte sage, Fluted oak, Brushed brass, Mirror, Quartz white, Led 2700k, Led 3000k, Led 4000k; default Oak |
| Width | How wide the piece is. | 0.6 to 3 m; default 1.4 m |
| Depth | How deep the piece is, front to back. | 0.4 to 1.4 m; default 0.8 m |
| Height | How tall the piece is. | 0.4 to 1.1 m; default 0.75 m |
| Top thickness | How thick the top is. | 12 to 60 mm; default 30 mm |
| Corner radius | Rounds the corners of the top. | 0 to 300 mm; default 20 mm |
| Edge profile | Ease the top perimeter | Square, Chamfer, Roundover; default Square; advanced |
| Edge size | How big the edge profile is. | 0 to 20 mm; default 6 mm; advanced |
Legs
The legs and where they stand.
| Field | What it does | Values |
|---|---|---|
| Leg profile | The shape of the legs. | Post, Tapered, Round, Turned, Hairpin, End panels; default Post |
| Leg taper | Narrowing toward the foot (tapered / round / turned legs) | 0 to 0.7; default 0.35; advanced |
| Leg splay | Angle the legs outward, mid-century style | 0 to 25°; default 0°; advanced |
| Leg size | How thick each leg is. | 25 to 120 mm; default 60 mm |
| Leg inset | How far the legs sit in from the edge of the top. | 0 to 400 mm; default 80 mm |
Apron
The rails under the top between the legs.
| Field | What it does | Values |
|---|---|---|
| Apron rails | Rails under the top between the legs. | On or off; default on |
| Apron height | How deep the apron rails are. | 40 to 180 mm; default 90 mm |
| Arched skirt | Curve the apron bottom up at the centre | 0 to 0.6; default 0; advanced |
How tables are designed
Open Custom furniture
In the editor, open Furnish and choose Custom furniture, or type CUSTOM (CF). The presets open, by kind.
Place it
Pick a table, then click where it goes in the room.
Shape it
Change its width, depth and height, the top's thickness, corners and edge, the legs and the apron.
Get the cut sheet
The cut sheet counts every board and nests it on stock sheets, with the edge tape, timber and hardware.
Tables questions, answered.
Which leg styles are there?
Square posts, tapered, round, turned and hairpin legs, and end panels. Legs can taper towards the floor and splay out, mid century style.
Can I size the table to my room?
Yes. Width runs from 0.6 to 3 m, depth from 0.4 to 1.4 m and height from 0.4 to 1.1 m.
Can the top have round corners?
Yes. Corner radius rounds the corners, up to 300 mm, and the edge can be square, chamfered or rounded over.
Can I get a cutting list?
Yes. The cut sheet lists the boards, nests them on a stock sheet size you choose, and adds up the edge tape, timber, hardware and machining.
